EC28A ring type incremental encoder for menu selection control

FOB Reference Price:Get Latest Price
US $0.2-2 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HONGYU
Model Number:
HEC28A
Usage:
Position Sensor
Theory:
Capacitance Sensor
Output:
Digital Sensor
type:
incremental encoder
Detent:
10/20
pulse:
10/20
size:
W28*D29*H6(4)
Rating:
DC 5V 10mA
Contact resistance:
10 ohm max
insulation resitance:
100M ohm min,250V DC
detent torque:
20-30gf.cm
operation life:
30000 cycles min
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic bag/ box/tray ,standard carton
Port
shenzhen port

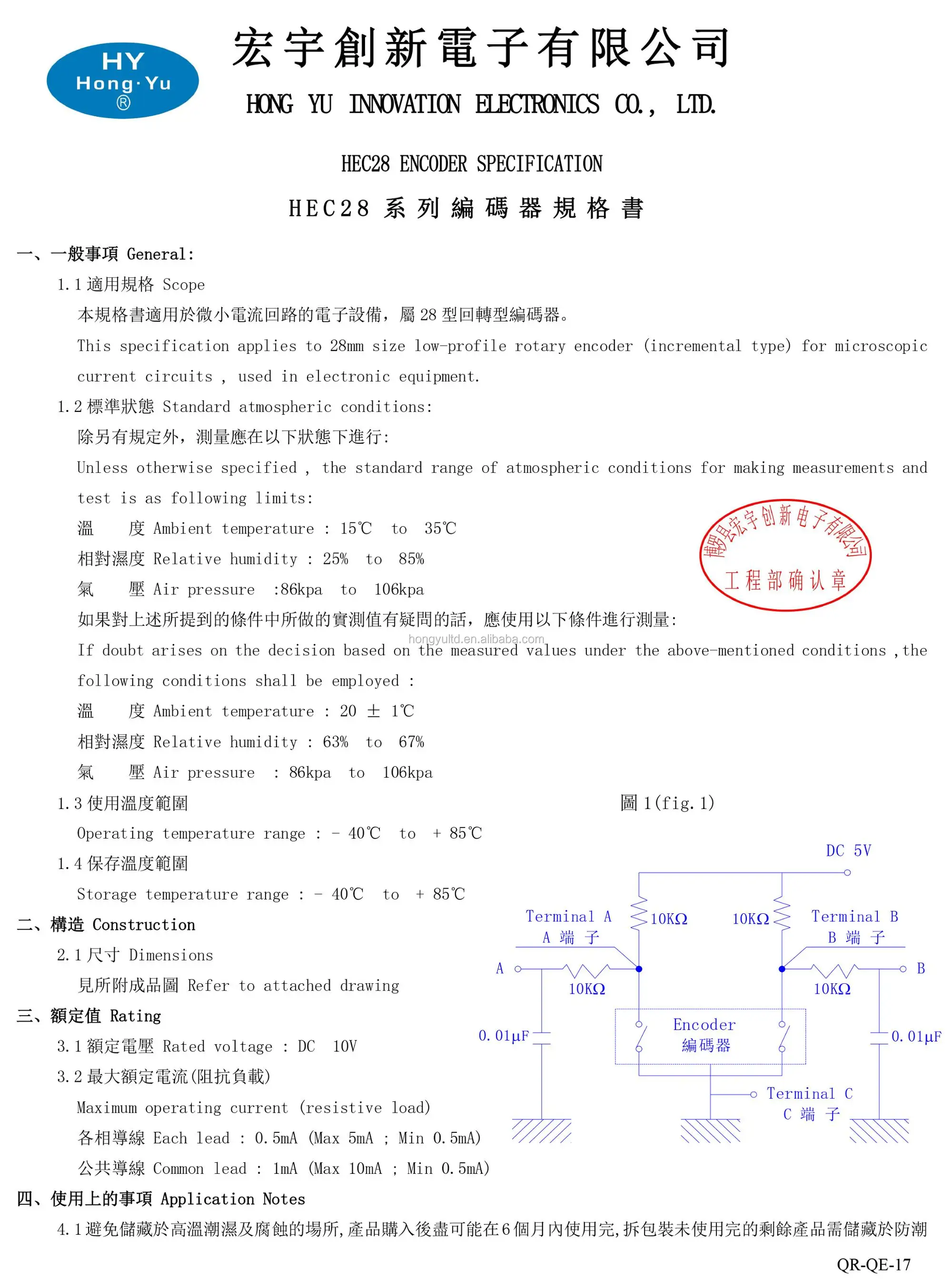

 hollow shaft encoder digital precision control 15pulse 30 detents
Specification:
Number of pulse/number of detents: 15/30

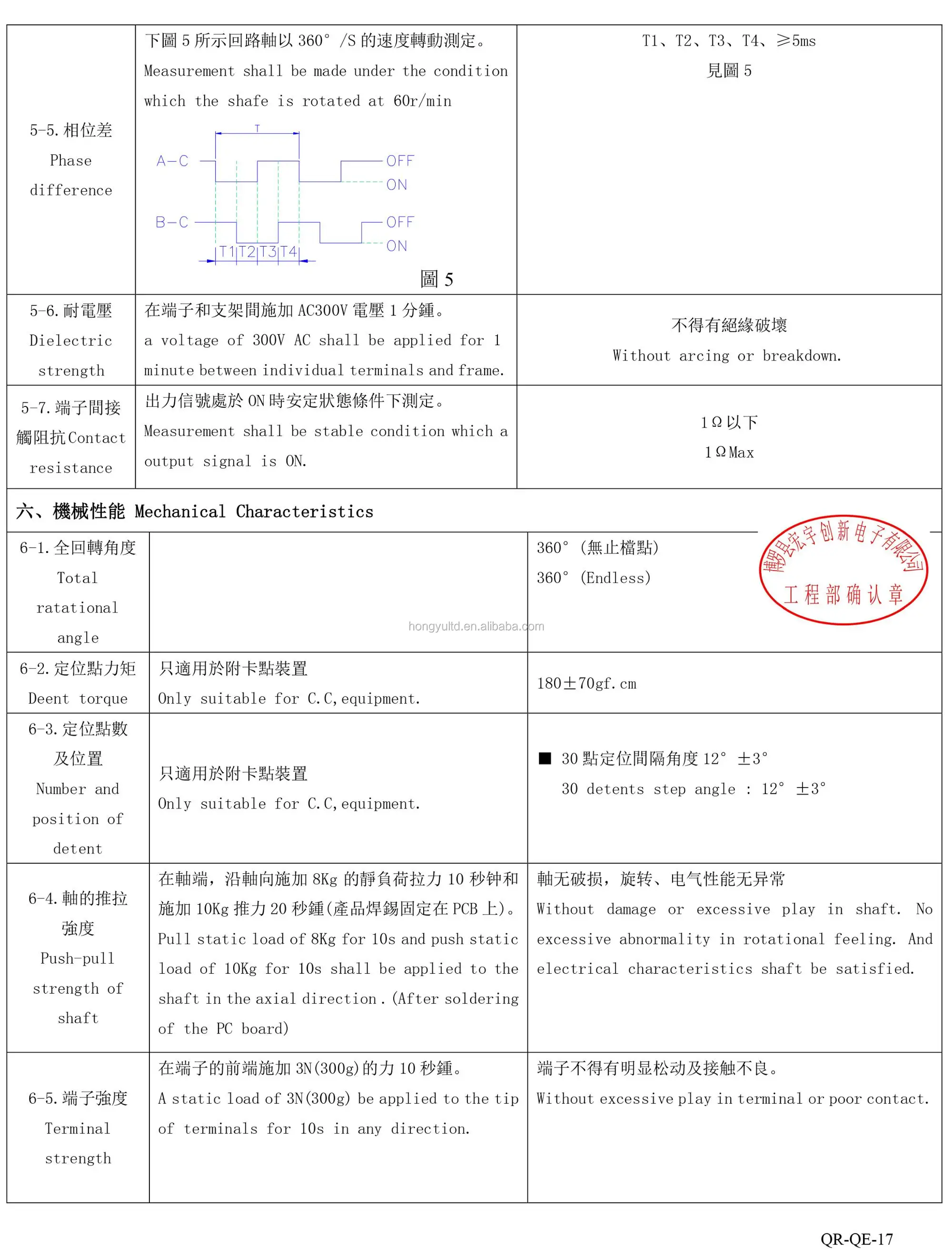

Detent angle: 18/12 degrees
Operating life: 30000 cycles min
Electricity grid: 5V DC/10mA
Output voltage: 1V max
Insulation-resistance: 100M Ω min, at 100V DC
Withstand voltage: 100V AC, 1 minute

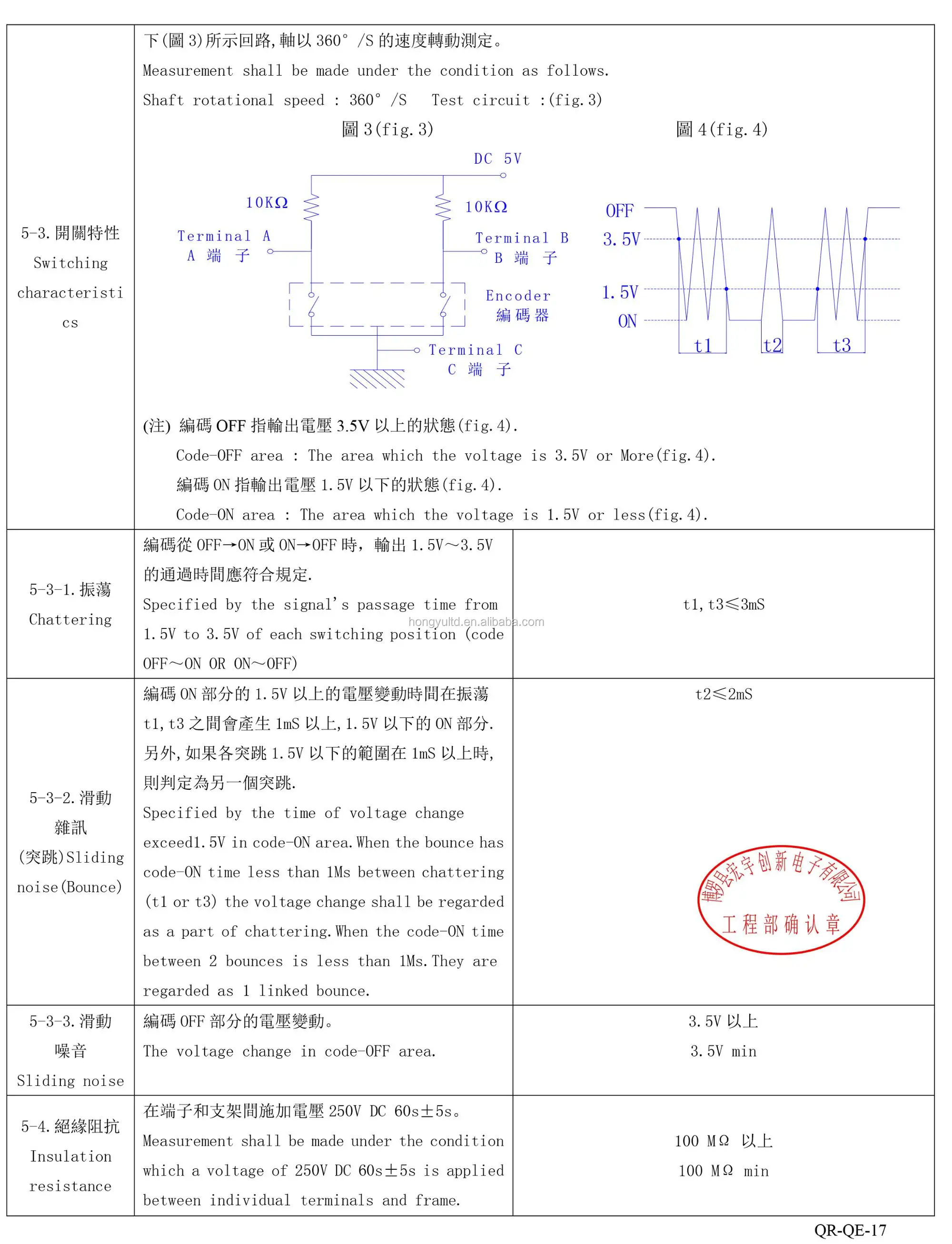

Sliding murmur: T1, T3 ≤8ms, T2 ≤3ms
Operating direction: vertical





          Hong Yu Innovation Electronics Co. Ltd is a professional enterprise specialized in the design and production of switches, band switches, switches with LED, pedal switches, guitar switches, rotary potentiometers, slide potentiometers, slide P.T with motor, P.T with LED, encoders and encoders with LED, which are widely used in home appliance, automotive, audio and radio equipment, digital camera, amplifier, digital stereo, car audio, music instrument, electronic toy, interphone, monitor, medical equipment, computer, IT peripherals and smart living. Our factory is located in Shi Wan Town (neighbor of Dongguan), Bo Luo County, Huizhou City, Guangdong Province, China.



Benefit from Our Advantages



· OEM/ODM supply

· Sample preparation time: within seven days after confirming the drawing

· One-stop service: integration of pre- and after-sale, save the time and improve the efficiency.



· Contact us today to get more information on products and our service.



Main Customer :  General Electric ,Electrolux ,Ibanze ,Keeley,Siemens,A.O.Smith, MEDELI,  Peavey,  SAPPA,  ITC,  YAMAHA,  Arcelik,  Whirlpool ...

           Our product are sold to many country,have been exported to North America,Western Europe,Southeast Asia,South America,Northern Europe,Mid East,Southern Europe,Africa and many other countries. We would like to cooperate with global customers and make the good protection project in world market.





1. Firstly seal products with hermetic plastic bag very well



2. Then using bubble or foam sheet to seperate them



3. Finally paper carton packing

Q1: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.



Q2: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it’s impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!



Q3: I can’t find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it,we can also design and make a new mould to produceit.For your reference,making a ordinary mould will take about 35-45days.



Q4 : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is noproblem.Just have to point out that ,it will cause some additional cost.



Q5: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.But you have to pay for the shipping cos.If you need many items, or need more qty for each item,we will charge for the samples.



Q6: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer) and Paypal. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem.



Q7 : What about your delivery time?
A: Almost 2-4weeks . Hot sell product such like H26 only 2-5days .
Special item I will check the delivery time with you.



Q8: How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT,EMS.That’s a
Door to Door service.For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.



9 . Q: Can I become an Agent / Dealer of LIANGU products?
A: Welcome! But please let me know your Country/Area fisrt,We will have a check and then
talk about this.If you want any other kind of cooperation,do not hesitate to contact us.




It's our great honor to do services for you! You also can get the
FREE SAMPLES soon.
